BOOMS

Art.-No. 14900-1401

THE LIGHTEST AND MOST ADVANCED BOOM IN ITS CLASS

KEY FEATURES

SILVER SERIES

High Tech Alu

The most high-tech aluminum boom to-date featuring 7075 high-tech aluminum

OVAL TAIL-SECTION

Increases boom stiffness by 30% (patent pending)

PREMIUM MATERIAL

7075 aluminium with PROTECTION GRIP

FRONT-END

iFRONT 2.0 - The lightest Front-End on earth

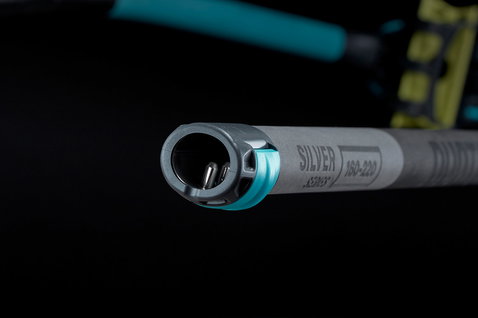

TAIL-END

INSIDE GRIPPED TAIL with iTAIL WAVE FITTING

2 Year Warranty

Duotone is giving 2 year full unconditional warranty, even including bending, when registered online

DETAILS

SILVER SERIES

All SILVER booms are made from 7075 high-tech aluminium in high-quality BONDED TECHNOLOGY. This material used predominantly in cycling gives the tubes significantly more stiffness. There is also the new combination of a round tube in the front area (holding forces act obliquely downwards, so it is stiffer around here) and the OVAL TAIL SECTION (horizontal sail pull, thus the oval tube is stiffer here). This makes the entire SILVER around 30% stiffer. Together with the hardened front arch, this results in enormous hardness and durability. We are even prepared to offer a two-year unlimited warranty on all SILVER models – even for bending!

The wave-oriented SILVER models consist of three segments and have a one-piece aluminium rear arch in addition to the intelligent iFRONT 2.0 front end. Together with the RDM tubes at 28 mm, this creates the ideal combination of stiffness and comfort. The bend curve applies an even pull on the mast- and backhand. The lengths 180 and 200 cm with performance bend curve are specifically for freeride sails and a 30 mm tube diameter to ensure maximum stiffness.

The entire SILVER line is equipped with the iTAIL WAVE tail end, whose patented Loop-Loop-Go 2.0 system for the first time guarantees absolutely perfect rope alignment. The solid PROTECTION GRIP coating on the outside effectively prevents damage to the coating when rigging up.

TECH SPECS

SILVER SERIES

LENGTH (CM)
BEND CURVE
WEIGHT (KG)
DIAMETER (MM)
MATERIAL
ADAPTER INCL.
TAIL-END
140-190150-200160-210180-230200-250
NEW SCHOOLNEW SCHOOLHYBRIDPERFORMANCEPERFORMANCE
2.352.452.552.752.95
2828283030
7075 ALUMINUM7075 ALUMINUM7075 ALUMINUM7075 ALUMINUM7075 ALUMINUM
RDMRDMRDM+SDMSDMSDM
INSIDE TAIL with iTAIL
WAVE FITTING
INSIDE TAIL with iTAIL
WAVE FITTING
INSIDE TAIL with iTAIL
WAVE FITTING
INSIDE TAIL with iTAIL
RACE FITTING
INSIDE TAIL with iTAIL
RACE FITTING

TECH FEATURES

SILVER SERIES

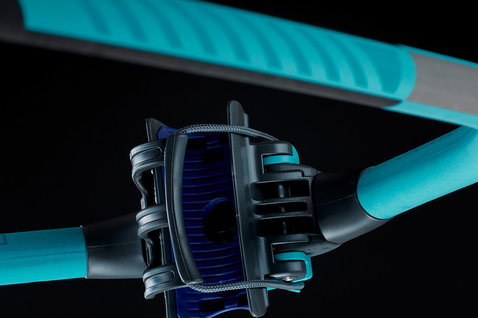

iFront 2.0
iFront 2.0iFront 2.0

THE LIGHTEST FRONT-END ON EARTH!

The technical masterpiece which makes all Duotone booms even more functional: iFRONT 2.0 the latest front-end of the next generation.

It doesn’t just look slimmer and smoother, the iFRONT 2.0 is also a whopping 35% lighter than its predecessor! With 345 grams it is the lightest front-end on the market!

90% of all other booms on the market are equipped with the same front-end from China, which usually differs only in color or design details. Especially in major components we at Duotone are investing heavily in research and development to be far ahead of the competition. A prime example of this is the completely redesigned and absolutely unique iFRONT 2.0 front-end; it combines maximum ease of use with highest functionality, lowest weight and guaranteed durability.
For the first time the construction of the iFRONT 2.0 combines the advantages of both concepts in one front-end:

A Vertical stiffness: Unlike other front-ends we use 50% longer stainless steel axle-bolts which are directly connected to the side walls. Thus we obtain a maximum vertical/torsion stiffness, which results in an extremely direct connection/transmission of boom to mast (= maximum performance).

B Horizontal flexibility: The partially recessed center of the collar gives the iFRONT 2.0 a kind of hinge function, so that the collar fits to any mast diameter without any gap (= very smooth on the mast and extremely slip resistant). We know of no other front-end that fits so smoothly around the mast and thus effectively protects the mast.

This exceptional fit is guaranteed on SDM as well as RDM masts as the iFRONT 2.0 can easily be adapted through the exchange of 2 different friction pads.

It is an open secret that different conditions require front-ends with different vertical/torsional stiffness so that the rig can develop its maximum potential yet the comfort doesn’t suffer. For this reason, we deliver the new iFRONT 2.0 in two different stiffness options that are tailored to the individual disciplines and requirements:

Stiffness I with 15% vertical flexibility has a very low flex for direct power transmission yet maximum control and comes with all RED, SILVER, as well as GOLD and PLATINUM (up to 170) booms.
Stiffness III with 0% vertical flexibility for uncompromizing torsion-stiffness and maximum performance on large sails comes with all GOLD and PLATINUM (190 and up) booms.
Of course, we remain true to our promise of long-term compatibility even with the iFRONT 2.0. Therefore it is 100% retro-compatible with older Duotone booms that can be upgraded and tuned.

iFront 2.0
iFront 2.0iFront 2.0

THE LIGHTEST FRONT-END ON EARTH!

The technical masterpiece which makes all Duotone booms even more functional: iFRONT 2.0 the latest front-end of the next generation.

It doesn’t just look slimmer and smoother, the iFRONT 2.0 is also a whopping 35% lighter than its predecessor! With 345 grams it is the lightest front-end on the market!

90% of all other booms on the market are equipped with the same front-end from China, which usually differs only in color or design details. Especially in major components we at Duotone are investing heavily in research and development to be far ahead of the competition. A prime example of this is the completely redesigned and absolutely unique iFRONT 2.0 front-end; it combines maximum ease of use with highest functionality, lowest weight and guaranteed durability.
For the first time the construction of the iFRONT 2.0 combines the advantages of both concepts in one front-end:

A Vertical stiffness: Unlike other front-ends we use 50% longer stainless steel axle-bolts which are directly connected to the side walls. Thus we obtain a maximum vertical/torsion stiffness, which results in an extremely direct connection/transmission of boom to mast (= maximum performance).

B Horizontal flexibility: The partially recessed center of the collar gives the iFRONT 2.0 a kind of hinge function, so that the collar fits to any mast diameter without any gap (= very smooth on the mast and extremely slip resistant). We know of no other front-end that fits so smoothly around the mast and thus effectively protects the mast.

This exceptional fit is guaranteed on SDM as well as RDM masts as the iFRONT 2.0 can easily be adapted through the exchange of 2 different friction pads.

It is an open secret that different conditions require front-ends with different vertical/torsional stiffness so that the rig can develop its maximum potential yet the comfort doesn’t suffer. For this reason, we deliver the new iFRONT 2.0 in two different stiffness options that are tailored to the individual disciplines and requirements:

Stiffness I with 15% vertical flexibility has a very low flex for direct power transmission yet maximum control and comes with all RED, SILVER, as well as GOLD and PLATINUM (up to 170) booms.
Stiffness III with 0% vertical flexibility for uncompromizing torsion-stiffness and maximum performance on large sails comes with all GOLD and PLATINUM (190 and up) booms.
Of course, we remain true to our promise of long-term compatibility even with the iFRONT 2.0. Therefore it is 100% retro-compatible with older Duotone booms that can be upgraded and tuned.

iFront 2.0
iFront 2.0iFront 2.0

THE LIGHTEST FRONT-END ON EARTH!

The technical masterpiece which makes all Duotone booms even more functional: iFRONT 2.0 the latest front-end of the next generation.

It doesn’t just look slimmer and smoother, the iFRONT 2.0 is also a whopping 35% lighter than its predecessor! With 345 grams it is the lightest front-end on the market!

90% of all other booms on the market are equipped with the same front-end from China, which usually differs only in color or design details. Especially in major components we at Duotone are investing heavily in research and development to be far ahead of the competition. A prime example of this is the completely redesigned and absolutely unique iFRONT 2.0 front-end; it combines maximum ease of use with highest functionality, lowest weight and guaranteed durability.
For the first time the construction of the iFRONT 2.0 combines the advantages of both concepts in one front-end:

A Vertical stiffness: Unlike other front-ends we use 50% longer stainless steel axle-bolts which are directly connected to the side walls. Thus we obtain a maximum vertical/torsion stiffness, which results in an extremely direct connection/transmission of boom to mast (= maximum performance).

B Horizontal flexibility: The partially recessed center of the collar gives the iFRONT 2.0 a kind of hinge function, so that the collar fits to any mast diameter without any gap (= very smooth on the mast and extremely slip resistant). We know of no other front-end that fits so smoothly around the mast and thus effectively protects the mast.

This exceptional fit is guaranteed on SDM as well as RDM masts as the iFRONT 2.0 can easily be adapted through the exchange of 2 different friction pads.

It is an open secret that different conditions require front-ends with different vertical/torsional stiffness so that the rig can develop its maximum potential yet the comfort doesn’t suffer. For this reason, we deliver the new iFRONT 2.0 in two different stiffness options that are tailored to the individual disciplines and requirements:

Stiffness I with 15% vertical flexibility has a very low flex for direct power transmission yet maximum control and comes with all RED, SILVER, as well as GOLD and PLATINUM (up to 170) booms.
Stiffness III with 0% vertical flexibility for uncompromizing torsion-stiffness and maximum performance on large sails comes with all GOLD and PLATINUM (190 and up) booms.
Of course, we remain true to our promise of long-term compatibility even with the iFRONT 2.0. Therefore it is 100% retro-compatible with older Duotone booms that can be upgraded and tuned.

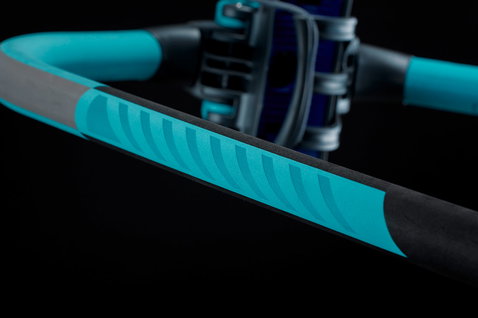

Protection Grip Insert
Protection Grip InsertProtection Grip Insert

MORE RESISTANT! The high-density EVA grip insert at the outside guarantes maximum abrasion resistance during rigging.

Protection Grip Insert
Protection Grip InsertProtection Grip Insert

MORE RESISTANT! The high-density EVA grip insert at the outside guarantes maximum abrasion resistance during rigging.

Protection Grip Insert
Protection Grip InsertProtection Grip Insert

MORE RESISTANT! The high-density EVA grip insert at the outside guarantes maximum abrasion resistance during rigging.

Wide Wave Tail Geometry
Wide Wave Tail GeometryWide Wave Tail Geometry

EQUAL LOAD ON BOTH HANDS AND IMPROVED HANDLING! Also the short booms now feature a 4 cm wider tail-end moving your back-hand further away from the sail. For the first time now your back- and front-hand are equally angled making sailing less fatigue. You immediately realize this much more relaxed sailing position no matter if going in a straight line or down the line on a wave. The second advantage is a much improved handling during ducking maneuvers.

Wide Wave Tail Geometry
Wide Wave Tail GeometryWide Wave Tail Geometry

EQUAL LOAD ON BOTH HANDS AND IMPROVED HANDLING! Also the short booms now feature a 4 cm wider tail-end moving your back-hand further away from the sail. For the first time now your back- and front-hand are equally angled making sailing less fatigue. You immediately realize this much more relaxed sailing position no matter if going in a straight line or down the line on a wave. The second advantage is a much improved handling during ducking maneuvers.

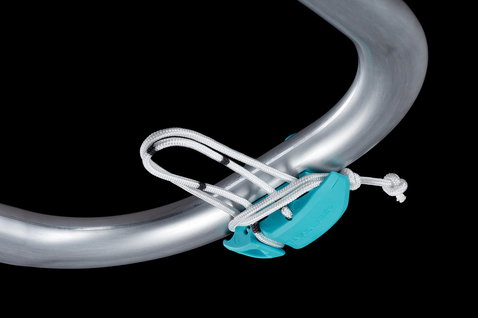

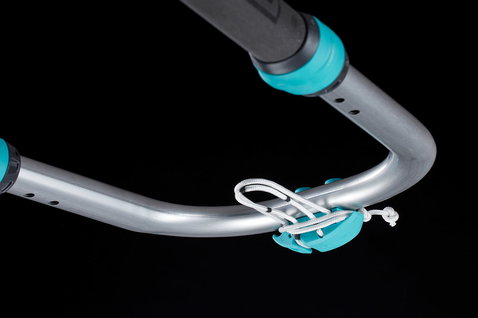

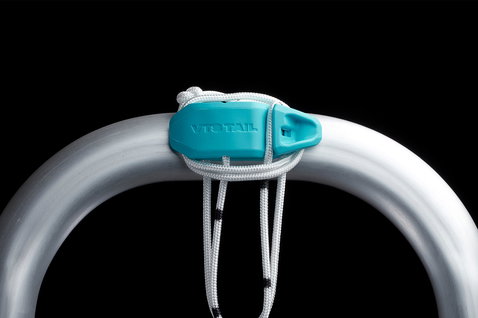

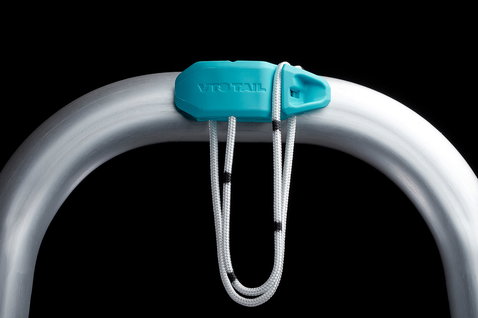

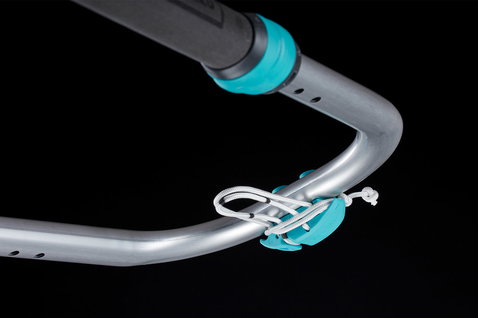

iTail Wave Fitting
iTail Wave FittingiTail Wave Fitting

FRICTIONLESS ALIGNMENT PLUS EXCESS ROPE STORAGE!

The iTAIL.WAVE fitting offers 2 revolutionary details:

A The patented LOOP.LOOP.GO 2.0 function guarantees an ideal 100% frictionless alignment of the rope!

B Instead of tying the excess rope around the tube you just wrap it around the integrated “bridge” at the bottom side – the cleanest and fastest solution ever!

iTail Wave Fitting
iTail Wave FittingiTail Wave Fitting

FRICTIONLESS ALIGNMENT PLUS EXCESS ROPE STORAGE!

The iTAIL.WAVE fitting offers 2 revolutionary details:

A The patented LOOP.LOOP.GO 2.0 function guarantees an ideal 100% frictionless alignment of the rope!

B Instead of tying the excess rope around the tube you just wrap it around the integrated “bridge” at the bottom side – the cleanest and fastest solution ever!

External Tail Fittings
External Tail FittingsExternal Tail Fittings

MINIMUM WEIGHT AND UNMATCHED FEATURES! Especially on carbon booms most brands integrate the fittings into the tail-end to generate a clean look. We prefer external fittings to achieve 3 crucial advantages:

  1. Much lower weight
  2. Features and functions which no other brand can offer (see iTAIL.RACE.FITTING and iTAIL.WAVE.FITTING)
  3. If need be super easy to exchange
iTail Race Fitting
iTail Race FittingiTail Race Fitting

RIGGING WITHOUT THREADING – EVEN WHEN USING AN ADJUSTABLE OUTHAUL-SYSTEM! The ultimate highlight is the all new iTAIL.RACE fitting. The teflon-POM synthetics build rollers feature a minimum of friction. Additionally, this unique solution allows to loop the rope even when using an adjustable outhaul-kit!

2 YEAR UNCONDITIONAL WARRANTY
2 YEAR UNCONDITIONAL WARRANTY2 YEAR UNCONDITIONAL WARRANTY

Light is right but only if it doesn't go to costs of durability.
Durability as part of the DUOTONE quality has always been one of the defining characteristics of our products - and it stays that way. Becuase despite offering the lightest components on the market we hold firmly to the course of our tried and true quality claim. This is ensured by sophisticted engineering, highest quality and more effectively used raw materials combined with the latest processing technologies.
The legendary DUOTONE longevity is therefore retained completely, which we guarantee for your with an industry-leading 2 YEAR UNCONDITIONAL WARRANTY!

WANNA MAKE IT UNCONDITIONAL?

TO SECURE THE EXTENDED CLAIMS PLEASE REGISTER WITHIN 30 DAYS.
OTHERWISE JUST THE LEGAL WARRANTY PERIOD CAN BE GRANTED!
