PLATINUM SERIES

Booms

incl. VAT, plus shipping
Variant:

dark blue-light blue

Read Product Description
Item-no. 14900-1404
The super-lightweight carbon PLATINUM in AEROSPACE PREPREG TECHNOLOGY is designed for experienced and performance-oriented riders with its ultra-stiff monocoque design. Word has long since got around that even PWA team riders of other rig brands buy the PLATINUM.
In order to meet the toughest challenges, three fully customised concepts are at the start:
› Wave >< Freestyle (140 + 150)
› Wave >< Freeride (160)
› Slalom-Race (170 + 190)

WAVE SERIES:
The bending line of the short lengths with a smaller opening angle at the front and wider tail end combine to form the EVEN CURVE, which ensures a more even pull on the mast and backhand. This improves handling when riding the waves and lessens fatigue when performing freestyle moves. The iTAIL WAVE FITTING with patented Loop-Loop-Go fitting (perfectly frictionless rope alignment) and complete nonslip grip coating is installed to match the range of use. For maximum grip comfort, the tail end is still inserted. By popular request, the PLATINUM is now also available in a MEGA SLIM version as the thinnest carbon boom worldwide with only 24.0 mm tube diameter (140-180 and 150-200).

HYBRID SERIES:
The wave/freeride version with HYBRID.CURVE was developed specifically for sail sizes 4.5 to 7.8, which can unfold optimally – in the truest sense of the word. For the very best grip comfort and secure hold when performing duck gybes, the tail end is half coated with Pro-Grip (INSIDE 50% GRIPPED TAIL). The low weight, iFRONT 2.0 front end and the stiffness of the monocoque design make it the highest-quality wave/freeride boom currently available.

RACE SERIES:
The large PLATINUM booms have tried-and-tested race/slalom bend curves. An additional highlight is the iTAIL RACE FITTING, whose Teflon POM plastic rollers minimise friction. Absolutely unique: The ropes can even be looped while an outhaul trimming system is in use (patent pending).

- The PLATINUM 170-230 features a 28 mm grip diameter, which is ideal for small and medium slalom sails and all freerace sail sizes.
Attention: the 170 length is mainly focussed on racing generating maximum stiffness despite the inside tail-end and the rather "small“ grip diameter. This can only be achieve through a certain pretension between the tail-end and the body. This pretension makes the PLATINUM 170 the stiffest boom of its kind on the market. Unfortunately though the pretension has a negative effect on the comfort while adjusting the boom length.
The 160 length (freeride focus) however comes with the same body than the 170 but features a tail-end with a smaller opening angle. This results in a 20% lower stiffness but a much higher comfort when adjusting the length.

- The brand-new PLATINUM 190-250 now features a 28.5 mm grip diameter plus an OVAL OUTSIDE TAIL for 40% increased stiffness. The OVAL OUTSIDE TAIL also ensures that maximum stiffness is obtained even when fully extended.
Absolute must for experts
The most used boom within the PWA racing fleet
PREMIUM MATERIAL
100% T800 Carbon Prepreg + SENTEX® Resin
FRONT-END

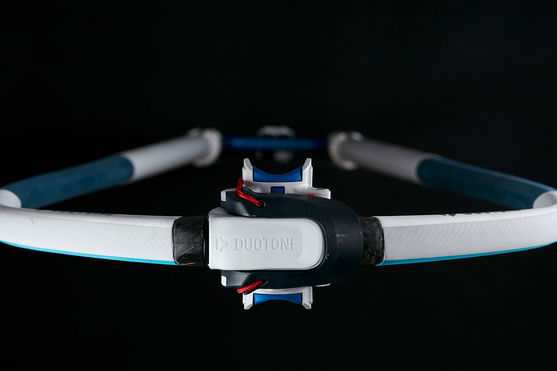

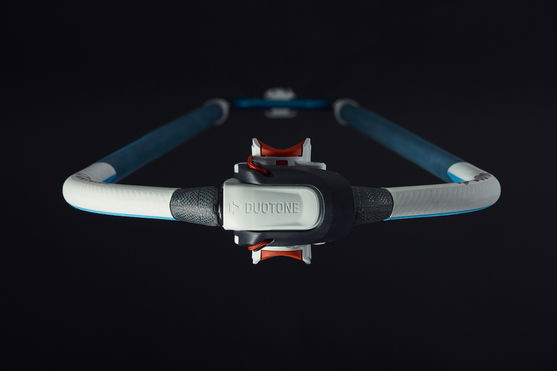

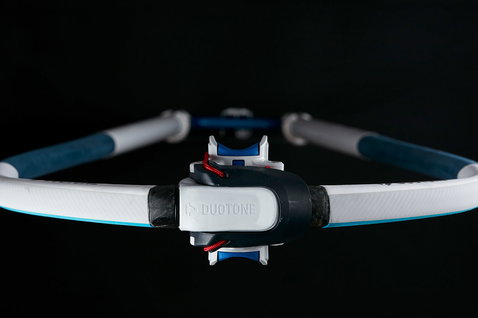

iFRONT 2.0 - The lightest moulded Front-End on earth
TAIL-END 140/150/160
INSIDE GRIPPED TAIL with VTS TAIL FITTING
TAIL-END 170
INSIDE TAIL with iTAIL RACE FITTING
TAIL-END 190

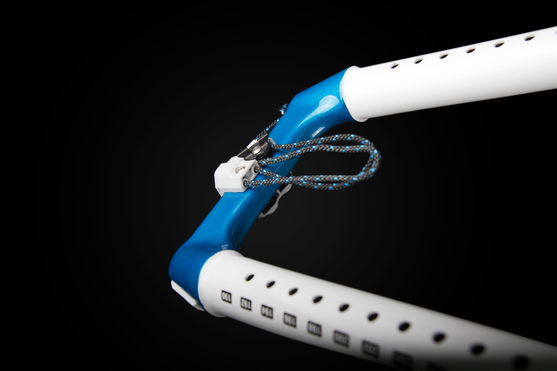

OVAL OUTSIDE TAIL with iTAIL RACE FITTING
LENGTH (CM)
BEND CURVE
WEIGHT (KG) (±8%)
DIAMETER (MM)*
MATERIAL
INCL. ADAPTER
TAIL-END
Best Size
140-180 MEGA SLIM
NEW SCHOOL
1.90
24.0
100% T800-Carbon + SENTEX® resin
RDM
INSIDE 100%-GRIPPED TAIL with iTAIL WAVE FITTING
Best Size
150-200 MEGA SLIM
NEW SCHOOL
1.95
24.0
100% T800-Carbon + SENTEX® resin
RDM
INSIDE 100%-GRIPPED TAIL with iTAIL WAVE FITTING
Best Size
140-190
NEW SCHOOL
2.20
27.5
100% T800-Carbon + SENTEX® resin
RDM
INSIDE 100%-GRIPPED TAIL with iTAIL WAVE FITTING
Best Size
150-200
NEW SCHOOL
2.25
27.5
100% T800-Carbon + SENTEX® resin
RDM
INSIDE 100%-GRIPPED TAIL with iTAIL WAVE FITTING
Best Size
160-220
HYBRID
2.40
28
100% T800-Carbon + SENTEX® resin
RDM+SDM
INSIDE 50%-GRIPPED TAIL with iTAIL WAVE FITTING
Best Size
170-230
SLALOM
2.65
28
100% T800-Carbon + SENTEX® resin
SDM
INSIDE TAIL with iTAIL RACE FITTING
Best Size
190-250
SLALOM
3.25
28.5/29.5
100% T800-Carbon + SENTEX® resin
SDM
OUTSIDE TAIL with iTAIL RACE FITTING

*In Grip Area without EVA
