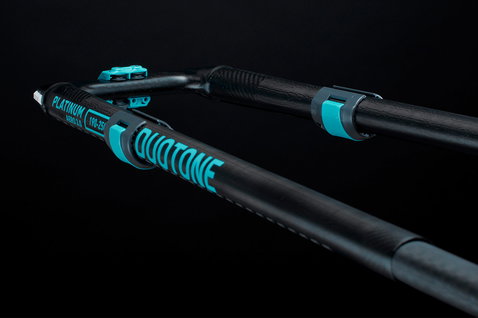

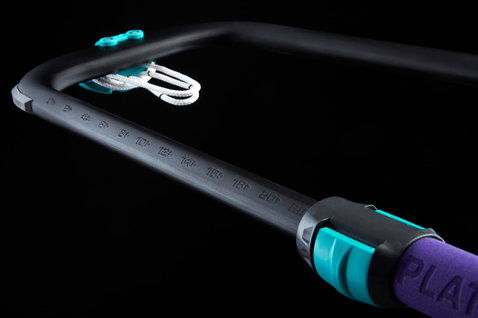

Platinum Series AERO 3.0

Thanks to the highest-quality mix of materials and unique production methods, it is an astonishing 200-400 g lighter than the already ultra-light PLATINUM SLS counterpart. Despite its slimmed-down weight, the PLATINUM AERO 3.0 is identical in design to the PLATINUM SLS SERIES.

With nearly 3 decades of Maui development and Munich engineering DUOTONE has the greatest experience in carbon booms in the industry.

The new PLATINUM AERO 3.0 lineup underlines this by being the most feature-packed carbon booms out there. The goal was to create the highest performing booms combined with the best ergonomics, unmatched stiffness and fastest operation. Here comes a rundown of these feature monsters:

FULL CUSTOM CONSTRUCTION We use 100% highest-grade T900 prepreg carbon and our exclusive SENTEX® resin impregnated with silicon nano-spheres.

SEGMENTED CROSS-SECTION TECHNOLOGY This results in a quantum leap in weight >< stiffness >< grip-ergonomics/comfort. With weights of 1.70 and 2.70 kg (depending on the length) the PLATINUM AERO 3.0 are the lightest booms on earth. The secret of these super-light weights lays in the SEGMENTED CROSS-SECTION TECHNOLOGY. Instead of the usual round cross section the PLATINUM AERO 3.0 feature a super sophisticated transition of different cross sections:

1. The SQUARE FRONT SECTION featuring a massive wall-thickness increases the stiffness by approx. 30%
2. The OVAL TAIL SECTION increases the lateral stiffness by another 30%

This results in the new PLATINUM AERO 3.0 not just being the lightest but also one of the stiffest booms. Another advantage of the OVAL TAIL SECTION is the reduced tail weight. Due to the leverage effect this has a tremendous effect on how light the PLATINUM AERO 3.0 feels in your hands (= sailing weight).

GRIPPING DIAMETER: GRIP COMFORT VS. STIFFNESS With the diameter in the gripping area you are dealing with 2 contradictory facts:

• The thinner the diameter, the more comfortable and less tiring it is to hold on to
• The thinner the diameter the softer the boom becomes

The enormous stiffness generated in the front and back allowed to use smaller diameters than any other boom in the gripping area. Together with the OVAL INSIDE GRIP SECTION this leads to an unmatched gripping comfort and reduced fatigue - sail longer and no more cramped fore-arms!

60 CM EXTENSION RANGE ON ALL BOOMS

• Just 1 boom to cover all your Wave sails
• Just 2 booms covering all racing disciplines and sizes

DISCIPLINE SPECIFIC BEND-CURVES All our bend-curves are designed to allow your front and back arm to sit in a natural ergonomic position while sailing. This position varies with the type of sail (Wave >< Race) so each boom size needs to be developed accordingly.

• The 140 Mega Slim has received a completely new bend curve called NEW SCHOOL 2.0. For the first time it combines the advantages of a straight new school curve (no overstretching of the front hand) and a performance oriented curve (wider distance of the tubes in the center to avoid the sail profile from getting distorted).
• For the 190 we use the same tried-and-tested race curves that have proven themselves in countless race victories over the last decade.

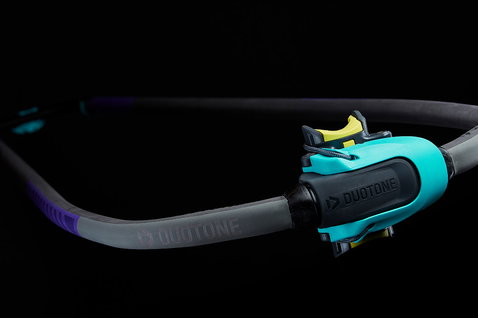

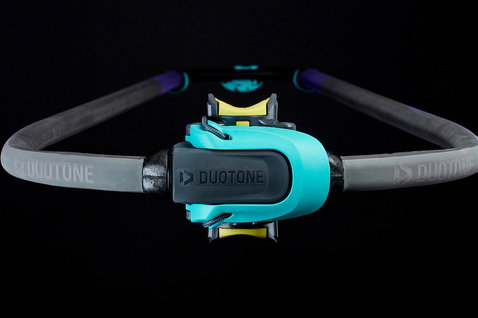

iFRONT 2.0 The lightest moulded front-end on earth

PROTECTION GRIP INSERT High density EVA grip inserts on the outside front arch for maximum abrasion resistance during rigging

EXTERNAL TAIL FITTINGS External tail fittings provide 3 main advantages compared to integrated fittings:

1. Lower weight
2. Stronger tail end. No weak points in the mould
3. Exchangeable

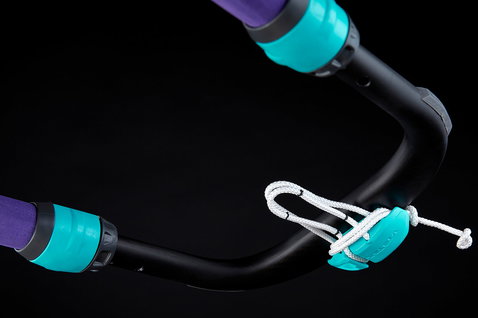

INDIVIDUAL TAIL FITTINGS

• The 140 size comes with our patented VTS TAIL fitting which visually indicates the correct outhaul tension (DUOTONE sail required)
• The 190 size comes with the iTAIL RACE fitting which allows loop-loop-go (the fastest way to rig your outhaul) even when used with an adjustable outhaul system

TRIANGLE BEARING CONSTRUCTION Bearings in-between the rotational front-end and the monocoque carbon body prevent the front-end from „grinding down“ the carbon which ultimately leads to a broken boom.

Attention: Because of the incredibly sophisticated manufacturing process, there is only an extremely limited number available (on a first-come, first-served basis).
