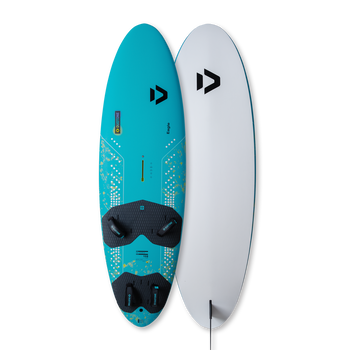

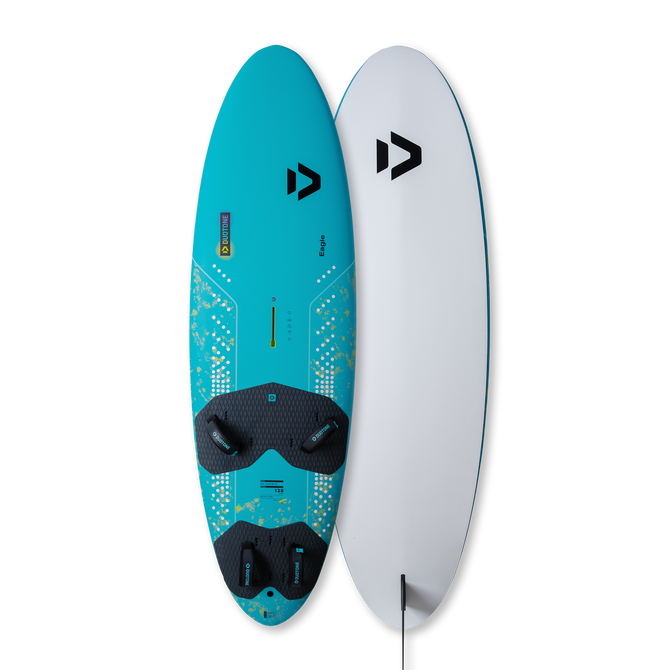

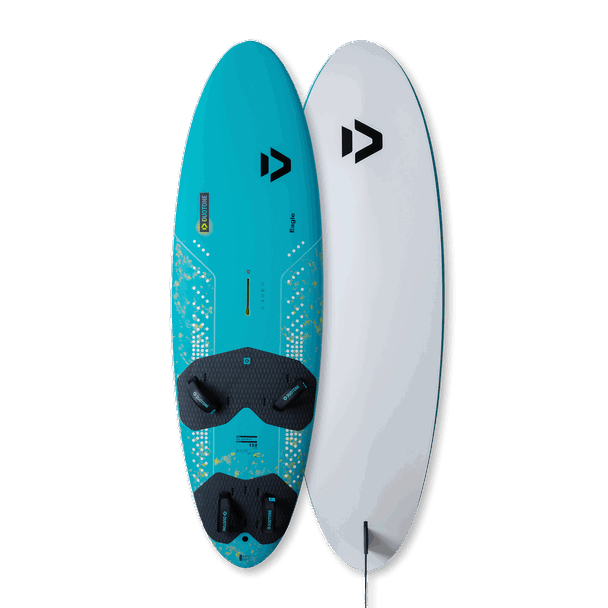

Eagle (SB, incl. fin) - C56:turquoise - 120
Eagle (SB, incl. fin) - C56:turquoise - 120
NEW

2026 Eagle

FREERIDE >> it’s all about planing

Variant:

C56:turquoise

Read Product Description
Find a Dealer
Item-no. 14260-1030

Unleash your potential. Built in our brand new CUSTOM CNC Technology, designed with our own AI_BOARD_3D software, which enables us to integrate unprecedented complex shaping tasks. The EAGLE makes high-end freeride boards affordable!

With the EAGLE and the brand-new BLITZ we offer 2 boards for the freeride >< freerace segment covering everything from learning to plane up to being the fastest sailor at your spot. Absolutely unique: with our brand-new CUSTOM CNC TECHNOLOGY we were able to reduce the weights by 500-800 grams compared to similar boards in this class! This radical weight reduction has an incredible impact on the low end performance as well as on the handling. With this these boards are both the lightest and earliest planing boards in their class.

EAGLE or BLITZ - which one is the right freeride><freerace board for you?

Where you come from >< Where it will take you

1) EAGLE: IT’S ALL ABOUT PLANING

  • Where you come from: you had your first Windsurfing experience and are capable of staying upwind. There is no other board which will help you to experience the gliding/planing sensation in such a short time than the EAGLE.
  • Where it will take you: besides getting planing, jibing is the second strength of the EAGLE. But it’s not just made for learning to (power)jibe but will even accompany you up to freerace blasting and laydown jibing

2) BLITZ: MAXIMUM PERFORMANCE WITH MINIMUM EFFORT

  • Where you come from: you are comfortable of sailing in the foot straps then the BLITZ is your performance machine.
  • Where it will take you: the BLITZ will instantly make you a faster sailor. Since it’s also very easy to jibe it will be your partner from your first power jibes up to pro level laydown race jibes. Partnered with a high performance fin and a freerace sail you might even become the fastest guy at your spot with the BLITZ, whilst still maintaining the comfort of a freeride board.


The EAGLE was designed with the following objectives:

> Super early (passive) planing

> Automatic/instinctive jibing

> Maximum wind range and control even in choppy conditions

This makes the EAGLE the perfect intermediate to advanced board which will accompany you from your first planing attempts all the way through to blasting and laydown jibing.


To achieve these characteristics the team around Dani Aeberli (Product Manager Boards) have developed the VOLUME YET CONTROL CONCEPT:

  • The slightly longer and therefore less curved outline allows us to increase the volume by up to 30 litres compared to short-curved boards (e.g. Fanatic Gecko or Tabou Rocket) without any loss of control.
  • The extra volume though results in a much more confident, predictable and relaxed riding position especially in underpowered or sub-planing conditions.

>> This leads to an unbeatable, broad range of use.

The slightly longer and therefore less curved outline also offers 2 additional important advantages:

1) It prevents the board from turning unnecessarily into the wind which lets the Eagle get onto a plane almost automatically

2) It prevents the board from bouncing around even in rough chop which becomes an issue with wide-curved boards


The maneuver-oriented rail shape allows for an effortlessness and predictable jibing behavior as the thin rails require less pressure to initiate the turn. This is ideal for jibing novices or to increase your lay-down jibing success rate.

Yet even for an advanced sailor the EAGLE is anything but a boring board to sail. It almost feels like a longer version of the BLITZ since it shares a very similar scoop-rocker line.


YOUR NEW EAGLE IS READY AND WAITING FOR YOU TO UNLEASH YOUR POTENTIAL!

It's all about planing
The EAGLE design concept is focussed on getting planing and helping you learning (power) jibes
CUSTOM CNC TECHNOLOGY
Our most price attractive boards made in CUSTOM CONSTRUCTION
Multi footstrap plugs
DUO RIDING STYLE PLUGS: Inboard position for improved manoeuvrability and a more relaxed riding style >< Outboard position for a more performance oriented riding style
Eagle (SB, incl. fin) - C56:turquoise
Wave
DOWN THE LINE / JUMPING
Freestyle
NEW SCHOOL
Freeride
PLANING POWER / EASY HANDLING
Race
MAX. ACCELERATION / V-MAX
Foil
BALANCED FLIGHT BEHAVIOUR
Entry
FORGIVING / DURABLE
BOARD
RIDER WEIGHT AS MAIN BOARD (KG)
RIDER WEIGHT AS SMALL BOARD (KG)
VOLUME (L)
WIDTH (CM)
LENGTH (CM)
TECHNOLOGY EAGLE
WEIGHT (KG) (+/-8%)
FITTINGS
MAX. SAIL SIZE (M²)
BEST MATCHING ION BOARDBAG*
Best Size
EAGLE 120
65-80
70-90
120
70
245
CUSTOM CNC
7.80
Fin: F_Ride (Power) 40 | 4 x Premium Strap 2.0
8.0
Windsurf Core 245x73
Best Size
EAGLE 130
70-85
80-100
130
73
250
CUSTOM CNC
8.30
Fin: F_Ride (Power) 42 | 4 x Premium Strap 2.0
8.3
Windsurf Core 250x79
Best Size
EAGLE 148
75-90
85-110
148
78
250
CUSTOM CNC
9.00
Fin: F_Ride (Power) 46 | 4 x Premium Strap 2.0
8.5
Windsurf Core 250x79
Best Size
EAGLE 168
80-110
100-125
168
83
255
CUSTOM CNC
9.80
Fin: F_Ride (Power) 48 | 4 x Premium Strap 2.0
8.8
Windsurf Core 255x85
Best Size
EAGLE 168 DB
--
--
168
83
255
CUSTOM CNC
11.90
Fin: F_Ride (Power) 48 | Daggerboard | 4 x Premium Strap 2.0 | 70% EVA deck
8.8
Windsurf Core 255x85
Best Size
EAGLE 188 DB
--
--
188
90
260
CUSTOM CNC
12.80
Fin: F_Ride (Power) 48 | Daggerboard | 4 x Premium Strap 2.0 | 70% EVA deck
8.8
--

Main color specs when repairing the board: Top: Pantone 3125 C | Bottom: Pantone White C

* ION Windsurf Boardbag Core
* ION Windsurf Boardbag Core Stubby

default

Comparison Technology Levels

FULL CUSTOM D/LAB
(used on all D/LAB boards)

- For these boards we use our most high-tech raw materials (Carbon, Innegra/Kevlar) resulting in the lowest possible weights, crispest ride sensation and maximum dent-resistance.

FULL CUSTOM SLS
(used on all 2026 SLS boards)

- The SLS construction uses a lower Carbon content and the Innegra is replaced by our exclusive S_GLASS+. This results in a more attractive price level.
- These boards are approx. 300g heavier than the D/LAB boards.
- Due to the FULL CUSTOM CONSTRUCTION the SLS boards are stronger and lighter than comparable boards made in the usual semi custom construction.

CUSTOM CNC
(used on BLITZ, EAGLE)

- Our most price attractive boards made in CUSTOM CONSTRUCTION. These boards feature wood reinforcements that effectively dampen peak loads.

TechFeature

CUSTOM CNC TECHNOLOGY

The CUSTOM CNC TECHNOLOGY is our durable sandwich construction for everyday use.

Instead of using a mould to bring the EPS foam core into its final shape each EPS block gets CNC milled. This ensures maximum precision and results in an unbeatable weight-strength ratio. Wood reinforcements effectively dampen peak loads.

Additional glass reinforcement patches around the critical impact zones ensure structural integrity. A thick, durable outer skin gives the hull maximum strength with high ding and impact resistance.

Deck Shape

Flatter deck shape for comfortable stance and maximum control during jibes.

Outline

Slightly longer and therefore less curved outline avoids the board from bouncing around in choppy conditions and improves passive planing. This also allows to increase the volume which results in a much more confident, predictable and relaxed riding position.

Rail Shape

Medium rail diameter in the nose and center offer an ideal blend of performance and manoeuvrability. Thinned out ergonomic rails towards the tail for increased jibing success rate.

Duotone Pro Pads

8-10mm thick duo density EVA (depending on the board type) provides best dampening comfort and control. The higher-density outer layer features our signature heat pressed diamond groove pattern that protects the EVA against abrasion and provides maximum grip level and connection to the board. We only select EVA colours which don't look dirty after use and will also resist fading after hours in the sun.

Duotone Premium Strap 2.0 incl. multi-plugs

High quality closed cell neoprene for maximum longevity. Only black Lycra coating guarantees maximum comfort as well as maximum durability. The strap features measurement markings to allow you to quickly set up and replicate your individual size.

DUO RIDING STYLE PLUGS:

  • Inboard position for improved manoeuvrability and a more relaxed riding style
  • Outboard position for a more performance oriented riding style


Bottom Shape

Progressive double concave V front to back: ideal compromise between performance, manoeuvrability and control + comfort even in rough chop.

Rocker Line

Longer flat between the straps for better passive planing, more stability and easier jibing + tacking.

AI_Board_3D

In contrast to the industry-standard Shape3d program, our own exclusive 3D CAD software is based on math data-driven input.

This allows us to cross-check the outcome using artificial intelligence to ensure maximum precision.

Apart from being much more accurate and faster, complex 3D design tasks such as our ground-breaking SYNCED CURVES CONCEPT would otherwise have been simply impossible to realize.

SYNCED CURVES CONCEPT

Outline, rocker and rail shape are the 3 key elements that determine how a board feels and performs. In every rocker- and outline there are spots with more or less curvature. The same applies to the degree of rail curvature which changes considerably. To prevent the 3 curves from working "against" each other, the highest priority is to synchronize these curves. Means that in zones with an increased rocker curve, the outline curve is also increased plus the rails have an increased curvature and vice versa.

To our knowledge this complex 3d task can only be performed by our own AI_BOARD_3D software. Testing this concept on existing boards the improvements to each board were so overwhelming that we incorporated this design feature into all 2026 boards.

CUSTOM CNC TECHNOLOGY

The CUSTOM CNC TECHNOLOGY is our durable sandwich construction for everyday use.

Instead of using a mould to bring the EPS foam core into its final shape each EPS block gets CNC milled. This ensures maximum precision and results in an unbeatable weight-strength ratio. Wood reinforcements effectively dampen peak loads.

Additional glass reinforcement patches around the critical impact zones ensure structural integrity. A thick, durable outer skin gives the hull maximum strength with high ding and impact resistance.

Deck Shape

Flatter deck shape for comfortable stance and maximum control during jibes.

Outline

Slightly longer and therefore less curved outline avoids the board from bouncing around in choppy conditions and improves passive planing. This also allows to increase the volume which results in a much more confident, predictable and relaxed riding position.

Rail Shape

Medium rail diameter in the nose and center offer an ideal blend of performance and manoeuvrability. Thinned out ergonomic rails towards the tail for increased jibing success rate.

Duotone Pro Pads

8-10mm thick duo density EVA (depending on the board type) provides best dampening comfort and control. The higher-density outer layer features our signature heat pressed diamond groove pattern that protects the EVA against abrasion and provides maximum grip level and connection to the board. We only select EVA colours which don't look dirty after use and will also resist fading after hours in the sun.

Duotone Premium Strap 2.0 incl. multi-plugs

High quality closed cell neoprene for maximum longevity. Only black Lycra coating guarantees maximum comfort as well as maximum durability. The strap features measurement markings to allow you to quickly set up and replicate your individual size.

DUO RIDING STYLE PLUGS:

  • Inboard position for improved manoeuvrability and a more relaxed riding style
  • Outboard position for a more performance oriented riding style


Bottom Shape

Progressive double concave V front to back: ideal compromise between performance, manoeuvrability and control + comfort even in rough chop.

Rocker Line

Longer flat between the straps for better passive planing, more stability and easier jibing + tacking.

AI_Board_3D

In contrast to the industry-standard Shape3d program, our own exclusive 3D CAD software is based on math data-driven input.

This allows us to cross-check the outcome using artificial intelligence to ensure maximum precision.

Apart from being much more accurate and faster, complex 3D design tasks such as our ground-breaking SYNCED CURVES CONCEPT would otherwise have been simply impossible to realize.

SYNCED CURVES CONCEPT

Outline, rocker and rail shape are the 3 key elements that determine how a board feels and performs. In every rocker- and outline there are spots with more or less curvature. The same applies to the degree of rail curvature which changes considerably. To prevent the 3 curves from working "against" each other, the highest priority is to synchronize these curves. Means that in zones with an increased rocker curve, the outline curve is also increased plus the rails have an increased curvature and vice versa.

To our knowledge this complex 3d task can only be performed by our own AI_BOARD_3D software. Testing this concept on existing boards the improvements to each board were so overwhelming that we incorporated this design feature into all 2026 boards.

TechFeature
DUOTONE-Windsurf_SS26_Fins-Technology_Single1

FINALLY LET'S TALK FINS

THE MATCHING FIN DESIGN HAS A SIMILAR IMPORTANCE TO THE BOARD PERFORMANCE AS THE RIGHT MAST FOR THE SAIL.
THAT'S WHY WE HAVE SPENT A TREMENDOUS TIME AND EFFORT INTO SETTING UP A TRULY UNIQUE FIN RANGE.


360° R&D
We don't just buy external stock fins. Instead one and the same team is now responsible for the board and fin development. This results in a perfectly matching unit lifting the board-fin performance to the next level.


FIN SPECIFIC TECHNOLOGIES
Instead of using one technology for all our fins we are using 3 different technologies according to the fin length and range of use:

- PREPREG FOR ALL LONGER FINS >> lighter than G10 and with adjustable flex due to the moulding process. 50% stronger than the usual RTM technology.

- G10 FOR ALL WAVE CENTER FINS >> indestructible

- INJECTION MOULDED CARBO_TECH FOR SHORT SIDE FINS >> guarantees the necessary tip-flex even on short fins.
DUOTONE-Windsurf_SS26_Fins-Technology_Single2

FINALLY LET'S TALK FINS


THE 2 MOST INFLUENTIAL FIN DESIGNERS
With Dani Aeberli and Kai Hopf, the two Windsurfing fin designers with the most experience are responsible for our new fin range.


EXCLUSIVE PRODUCTION
Setting up our own exclusive production was inevitable to take our fin performance to the next level. Every process is supervised on site by our own QC specialist Vasin Siritho to guarantee the highest level in quality and consistency.


FOR ALL THESE REASONS, WE HIGHLY RECOMMEND TO ONLY USE THE FINS SUPPLIED WITH THE BOARD.
THIS IS THE WAY - TO UNLEASH THE BOARD'S FULL POTENTIAL!

+6 WARRANTY

REGISTER YOUR NEW DUOTONE BOARD FOR FREE ON OUR WEBSITE WITHIN 60 DAYS OF PURCHASE AND RECEIVE AN UNRIVALED EXTENDED WARRANTY OF 6 MONTHS BEYOND THE LEGAL WARRANTY PERIOD OF YOUR COUNTRY (EXCLUDING DENTS).

PLEASE REGISTER HERE

YOUR PERFECT SAIL MATCH

Quote RAOUL JOA (DIVISION MANAGER)

»TO BE HONEST, I WASN'T PARTICULARLY MOTIVATED THE FIRST TIME I TESTED THE EAGLE, AS I USUALLY SAIL ON THE BLITZ OR FALCON_FIN. BUT THE MORE I WAS BLOWN AWAY: THE EAGLE CUTS THROUGH EVEN THE MOST BRUTAL CHOP LIKE A HOT KNIFE. THIS EXTRA CONTROL HELPS EVERYONE, FROM PLANING BEGINNER TO ADVANCED FREERIDERS, TO LEARN OR SIMPLY BE FASTER. AND WHEN I PUSHED THE EAGLE INTO THE FIRST POWER JIBE, IT FELT LIKE A JIBING AUTOPILOT - JUST PUSH AND THE EAGLE DOES THE REST.«

— RAOUL JOA (DIVISION MANAGER)
